FABA^® Supra PN 63-160

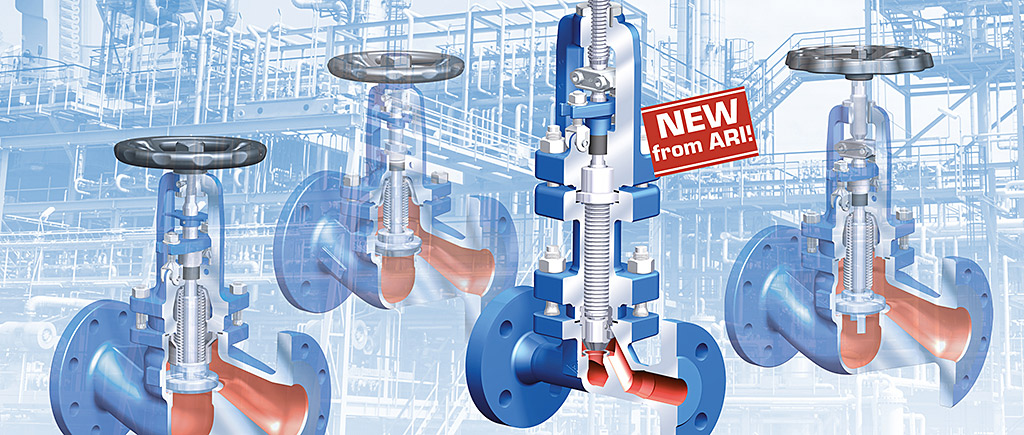

Bellows seal valves FABA now also for medium pressure (PN 63-160)
with nominal diameters DN 10-100

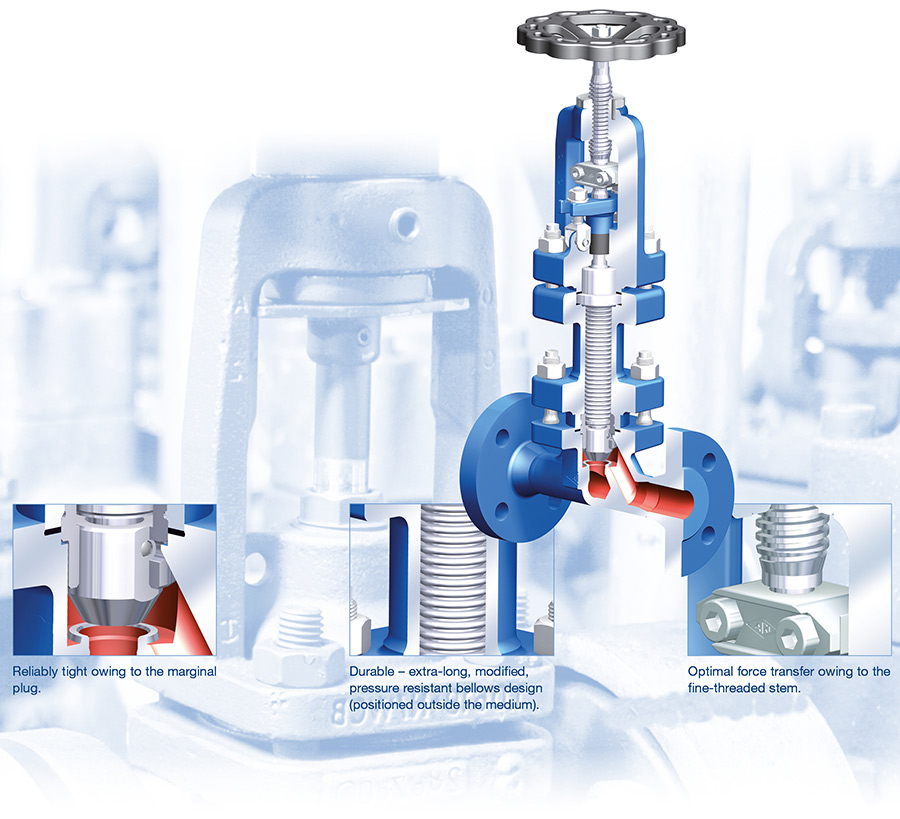

• Reliably tight, even in harsh industrial environments due to bellows seal, the serrated seal and the stellited seat with marginal seat (ideal hardness gradient Stellite 6 / Stellite 21).
• Even safer to use due to the balancing plug (optional as from DN 65)
• Durable and failsafe due to bellow that is positioned outside the medium
• Durable due to extra-long, modified and pressure resistant bellows design
• Durable due to reinforced bellows seal up to 10,000 cycles
• Tested safety by approval acc. to DIN EN ISO 15848-1 / TA-Luft
• Tested tightness: sealing leakage test with air for all valves (leakage rate “A” acc. to DIN EN)

Design: DIN
Materials: Cast steel, forged steel, heat resistant steel
Nominal diameter: DN 10-100
Nominal pressure: PN 63-160

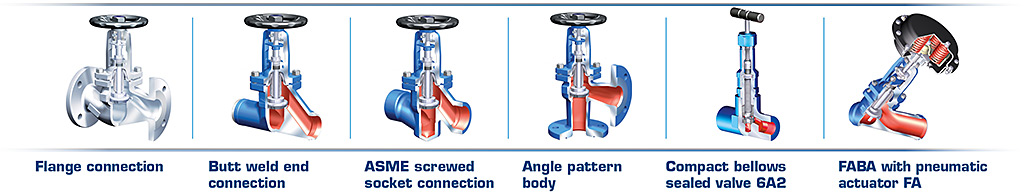

Connection types: Flanges, butt weld ends

Download:
FABA brochure Data sheet
