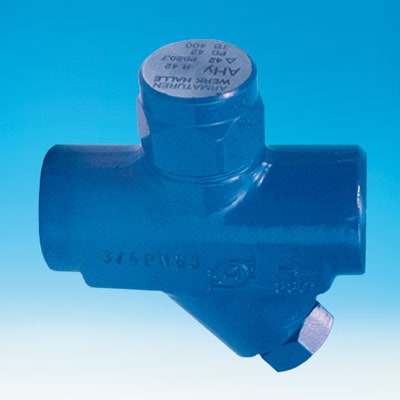

ARI-CONA TD
| Application: | For discharge of condensate with limited sub-cooling |
|---|---|
| Medium: | Steam, condensate, etc. |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
45640-1 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 450 °C | Standard |
|
|
45641-1 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 450 °C | Standard |
|
|
45640-2 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | screwed socket | Straight through | -60 °C to 450 °C | Standard |
|
|
45641-2 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | screwed socket | Straight through | -60 °C to 450 °C | Standard |
|
|
45640-3 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | socket end | Straight through | -60 °C to 450 °C | Standard |
|
|
45641-3 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | socket end | Straight through | -60 °C to 450 °C | Standard |
|
|
45640-4 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C | Standard |
|
|
45641-4 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C | Standard |
|
|
55640-1 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | flanged | Straight through | -60 °C to 400 °C | Standard |
|
|
55641-1 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | flanged | Straight through | -60 °C to 400 °C | Standard |
|
|
55640-2 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | screwed socket | Straight through | -60 °C to 400 °C | Standard |
|
|
55641-2 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | screwed socket | Straight through | -60 °C to 400 °C | Standard |
|
|
55640-3 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | socket end | Straight through | -60 °C to 400 °C | Standard |
|
|
55641-3 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | socket end | Straight through | -60 °C to 400 °C | Standard |
|
|
55640-4 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | butt weld end | Straight through | -60 °C to 400 °C | Standard |
|
|
55641-4 | PN 40 | DN 15-DN 25 | X6CrNiTi18-10, 1.4541 | butt weld end | Straight through | -60 °C to 400 °C | Standard |
|
|
56641-2 | PN 63 | DN 10-DN 20 | A743 CA40 | screwed socket | Straight through | -60 °C to 400 °C | Standard |
|
|
56641-2 | PN 63 | DN 25-DN 25 | screwed socket | Straight through | -60 °C to 400 °C | Standard | |
|
|
56641-3 | PN 63 | DN 15-DN 20 | A743 CA40 | socket end | Straight through | -60 °C to 400 °C | Standard |
|
|
85640-1 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | flanged | Straight through | -10 °C to 450 °C | Standard |
|
|
85641-1 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | flanged | Straight through | -10 °C to 450 °C | Standard |
|
|
85640-2 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | screwed socket | Straight through | -10 °C to 450 °C | Standard |
|
|
85641-2 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | screwed socket | Straight through | -10 °C to 450 °C | Standard |
|
|
85640-3 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | socket end | Straight through | -10 °C to 450 °C | Standard |
|
|
85641-3 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | socket end | Straight through | -10 °C to 450 °C | Standard |
|
|
85640-4 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | butt weld end | Straight through | -10 °C to 450 °C | Standard |
|
|
85641-4 | PN 40 | DN 15-DN 25 | 16Mo3, 1.5415 | butt weld end | Straight through | -10 °C to 450 °C | Standard |

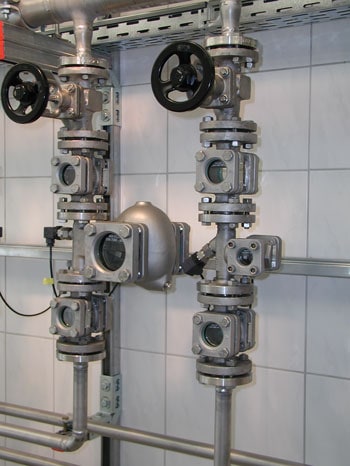

Vapour facilities

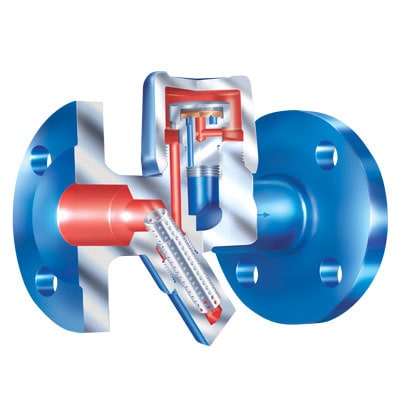

Cap with heat chamber (water-shock rnresistance) impervious to weather and rnensures high performance. |
Integral non-return function for high rnperformance. |
Metal seals for long life and economy. rnRapid-assembly housing for optimum rnhandling. Seal-free. (See also CONA B). |
