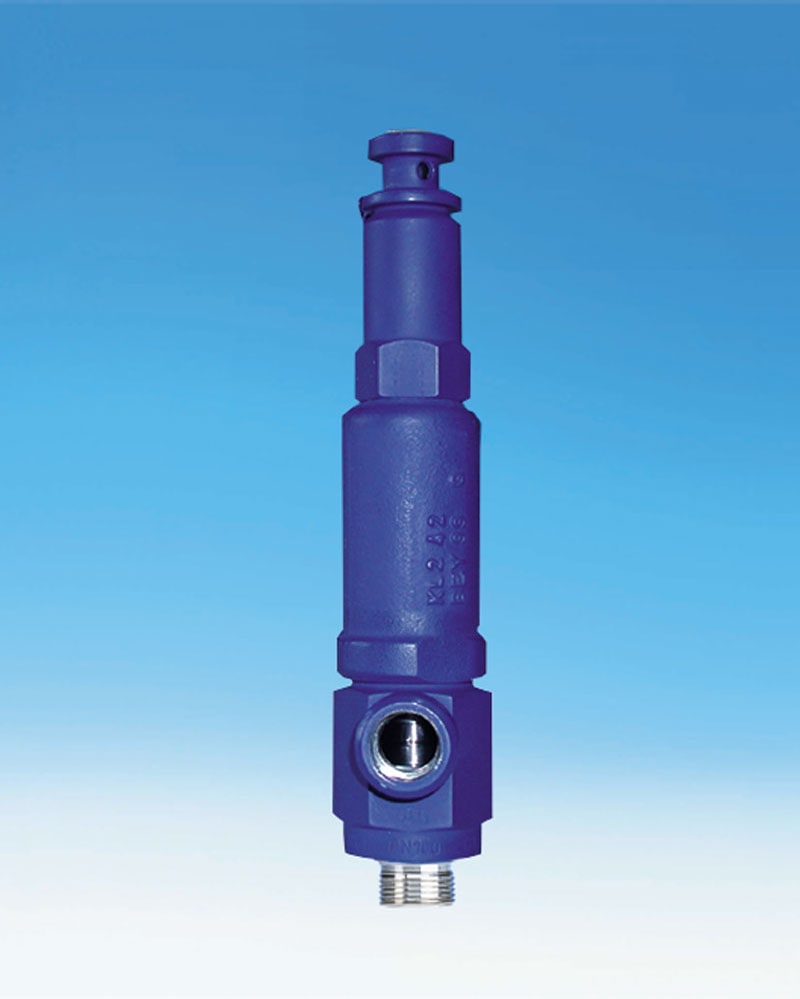

ARI-SAFE TCS
| Application (Stainless Steel): | Chemical Industry, processing industry, plant manufacturing |
|---|---|
| Medium (Stainless Steel): | Steam, aggressive gases, vapours and liquids |
| eClass-No.: | 37010905 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
57951 | PN100 | DN 15-DN 25 | GX5CrNiMoN19-11-2, 1.4581 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rnclosed lifting device |
|
|
57953 | PN100 | DN 15-DN 25 | GX5CrNiMoN19-11-2, 1.4581 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rngastight cap |
|
|
67951 | PN100 | DN 15-DN 25 | 1.4581 / EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnclosed lifting device |
|
|
67952 | PN100 | DN 15-DN 25 | 1.4581 / EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnopen lifting device |
|
|
67953 | PN100 | DN 15-DN 25 | 1.4581 / EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rngastight cap |
