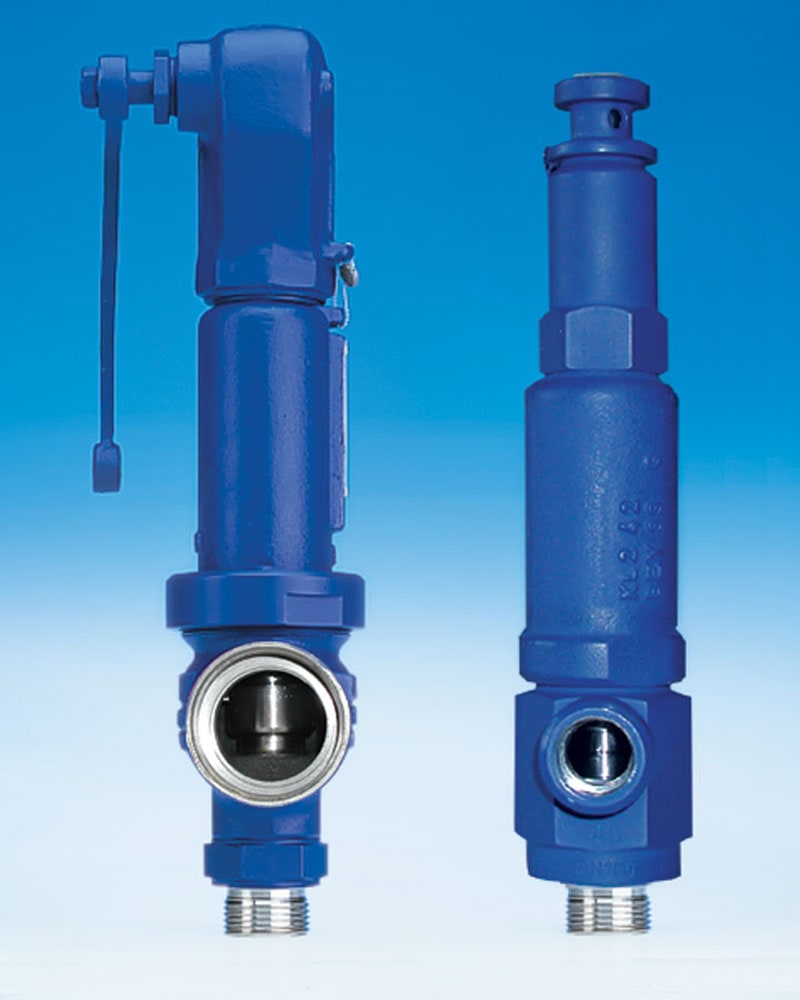

ARI-SAFE TC - TRD721

Application: Heating facilities
Medium: Warm water, hot water
eClass-No.:37010905

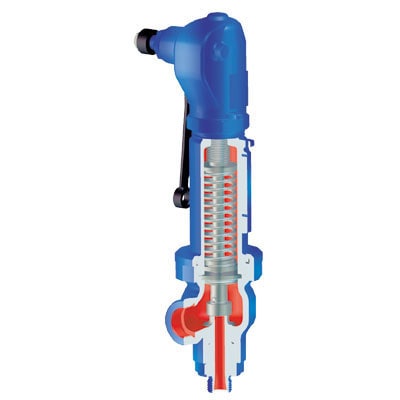

Valve-TableCross-section drawingOperating instructionChemical resistance
Legende: 11 = Approvals
Figure PN DN Material Connection Form Temperature/*body Variation
25945 PN 40 DN 15-DN 20 EN-GJS-400-18U-LT, EN-JS1049 screwed socket Angle pattern -10 °C to 350 °C spring loaded rnWEDI-disc rnEPDM-bellow
25945 PN 40 DN 25-DN 25 EN-GJS-400-18U-LT, EN-JS1049 screwed socket Angle pattern -10 °C to 350 °C spring loaded rnWEDI-disc rnEPDM-bellow
25946 PN 40 DN 15-DN 20 EN-GJS-400-18U-LT, EN-JS1049 screwed socket Angle pattern -10 °C to 350 °C spring loaded rnmetal disc rnEPDM-bellow
25946 PN 40 DN 25-DN 25 EN-GJS-400-18U-LT, EN-JS1049 screwed socket Angle pattern -10 °C to 350 °C spring loaded rnmetal disc rnEPDM-bellow
