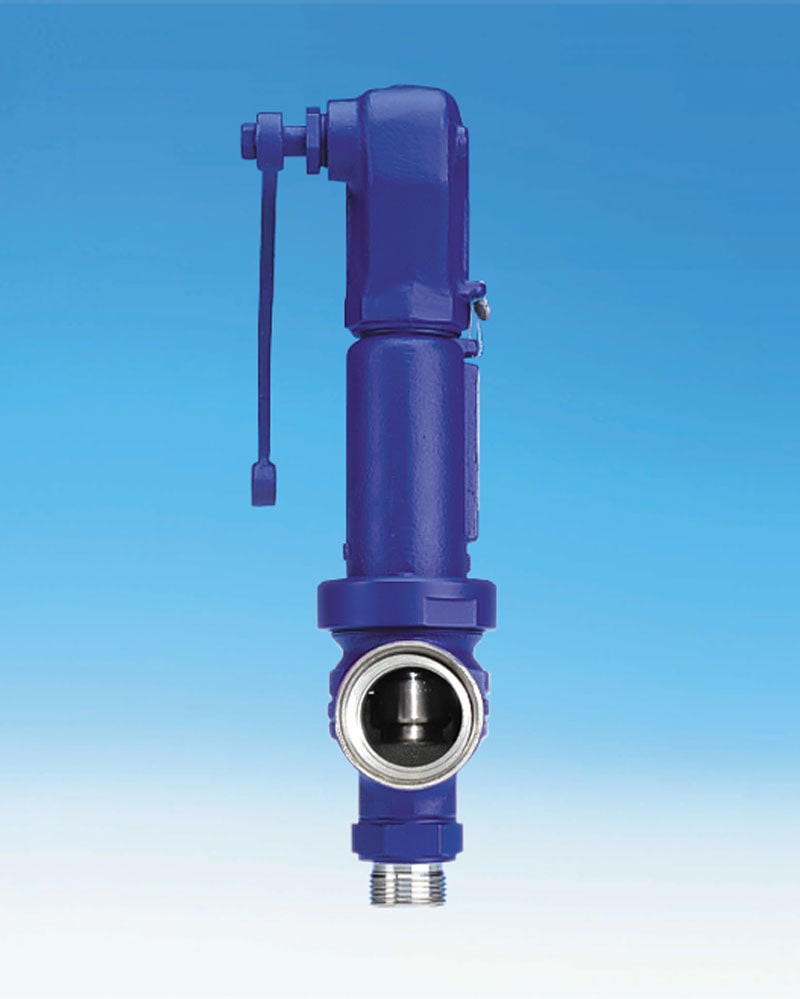

ARI-SAFE TC
| Application: | Industrial installations, processing technology, plant manufacturing, etc. |
|---|---|
| Medium: | Steam, neutral gases, vapours and liquids |
| Application (Stainless Steel): | Industrial installations, processing technology, plant manufacturing, etc. |
| Medium (Stainless Steel): | Steam, aggressive gases, vapours and liquids |
| eClass-No.: | 37010905 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
25941 | PN 40 | DN 15-DN 20 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnclosed lifting device |
|
|
25941 | PN 40 | DN 25-DN 25 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnclosed lifting device |
|
|
25942 | PN 40 | DN 15-DN 20 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnopen lifting device |
|
|
25942 | PN 40 | DN 25-DN 25 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rnopen lifting device |
|
|
25943 | PN 40 | DN 15-DN 20 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rngastight cap |
|
|
25943 | PN 40 | DN 25-DN 25 | EN-GJS-400-18U-LT, EN-JS1049 | screwed socket | Angle pattern | -10 °C to 350 °C | closed bonnet rngastight cap |
|
|
55941 | PN 40 | DN 15-DN 20 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rnclosed lifting device |
|
|
55941 | PN 40 | DN 25-DN 25 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rnclosed lifting device |
|
|
55943 | PN 40 | DN 15-DN 20 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rngastight cap |
|
|
55943 | PN 40 | DN 25-DN 25 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Angle pattern | -60 °C to 400 °C | closed bonnet rngastight cap |

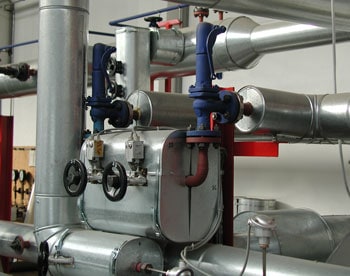

Thermel oil facilities
