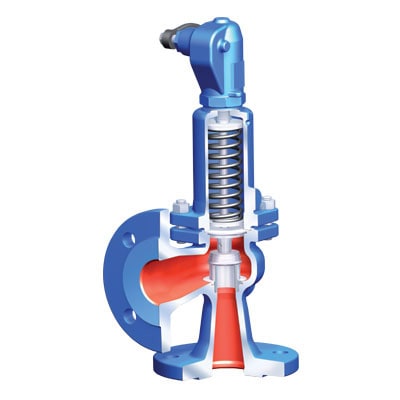

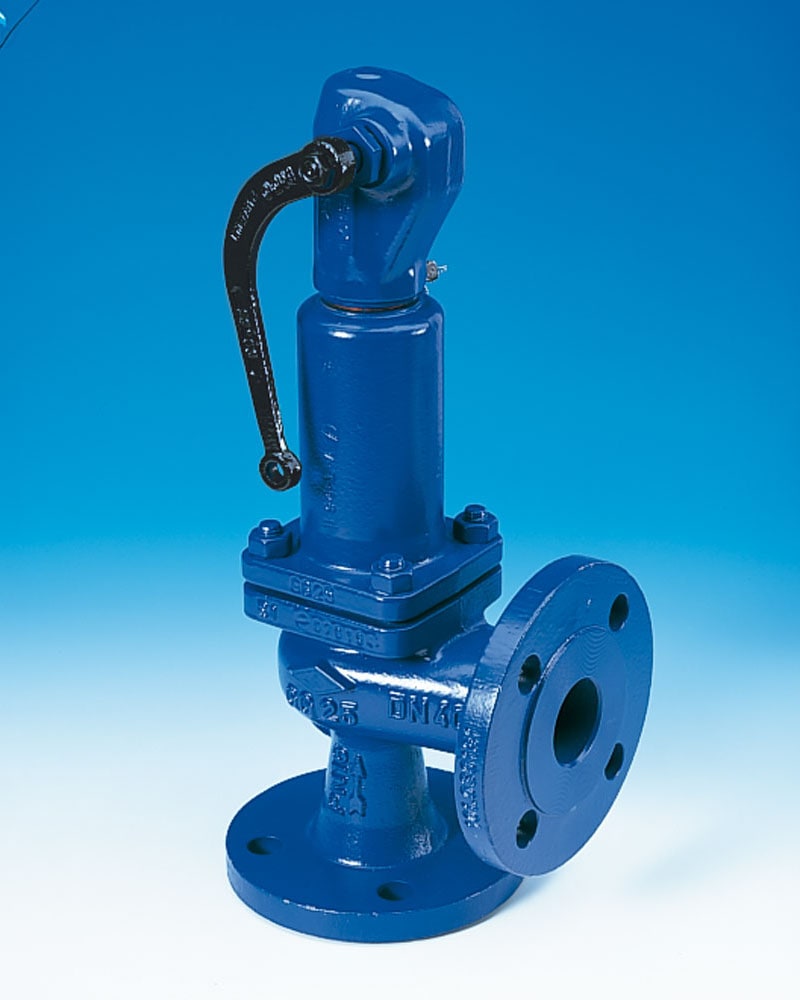

ARI-SAFE P
| Application: | Industrial installations, processing technology, plant manufacturing, etc. |
|---|---|
| Medium: | Steam, neutral gases, vapours and liquids |
| Application (Stainless Steel): | Chemical Industry, processing industry, plant manufacturing |
| Medium (Stainless Steel): | Steam, aggressive gases, vapours and liquids |
| eClass-No.: | 37010905 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
12921 | PN 16 | DN 20-DN100 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rnclosed lifting device |
|
|
12922 | PN 16 | DN 20-DN100 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rnopen lifting device |
|
|
12923 | PN 16 | DN 20-DN100 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rngastight cap |
|
|
12924 | PN 16 | DN 20-DN100 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | open bonnet rnopen lifting device |
|
|
35921 | PN 40 | DN 20-DN100 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rnclosed lifting device |
|
|
35922 | PN 40 | DN 20-DN100 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rnopen lifting device |
|
|
35923 | PN 40 | DN 20-DN100 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rngastight cap |
|
|
35924 | PN 40 | DN 20-DN100 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | open bonnet rnopen lifting device |
|
|
55921 | PN 40 | DN 20-DN100 | GX5CrNiMo19-11-2, 1.4408 | flanged | Angle pattern | -60 °C to 400 °C | closed bonnet rnclosed lifting device |
|
|
55923 | PN 40 | DN 20-DN100 | GX5CrNiMo19-11-2, 1.4408 | flanged | Angle pattern | -60 °C to 400 °C | closed bonnet rngastight cap |
