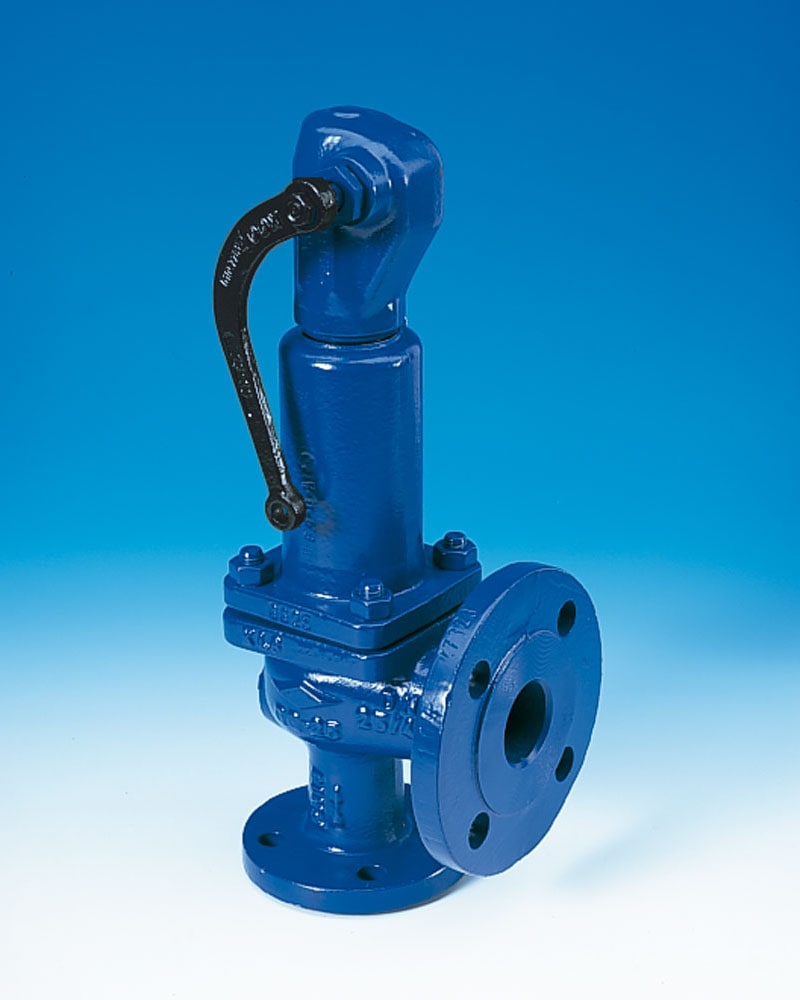

ARI-SAFE - EN ISO 4126-1
| Application: | Industrial installations, processing technology, plant manufacturing, etc. |
|---|---|
| Medium: | Steam, neutral gases, vapours and liquids |
| Application (Stainless Steel): | Chemical Industry, processing industry, plant manufacturing |
| Medium (Stainless Steel): | Steam, aggressive gases, vapours and liquids |
| eClass-No.: | 37010905 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
12901 | PN 16 | DN 20-DN150 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rnclosed lifting device |
|
|
12902 | PN 16 | DN 20-DN150 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | open bonnet rnopen lifting device |
|
|
12911 | PN 16 | DN 20-DN150 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rngastight cap |
|
|
12912 | PN 16 | DN 20-DN150 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C | closed bonnet rnopen lifting device |
|
|
25901 | PN 40 | DN 20-DN100 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C | closed bonnet rnclosed lifting device |
|
|
25902 | PN 40 | DN 20-DN100 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C | open bonnet rnopen lifting device |
|
|
25911 | PN 40 | DN 20-DN100 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C | closed bonnet rngastight cap |
|
|
25912 | PN 40 | DN 20-DN100 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C | closed bonnet rnopen lifting device |
|
|
35901 | PN 40 | DN 20-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rnclosed lifting device |
|
|
35902 | PN 40 | DN 20-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | open bonnet rnopen lifting device |
|
|
35911 | PN 40 | DN 20-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rngastight cap |
|
|
35912 | PN 40 | DN 20-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | closed bonnet rnopen lifting device |
|
|
55901 | PN 40 | DN 20-DN100 | GX5CrNiMo19-11-2, 1.4408 | flanged | Angle pattern | -60 °C to 400 °C | closed bonnet rnclosed lifting device |
|
|
55911 | PN 40 | DN 20-DN100 | GX5CrNiMo19-11-2, 1.4408 | flanged | Angle pattern | -60 °C to 400 °C | closed bonnet rngastight cap |

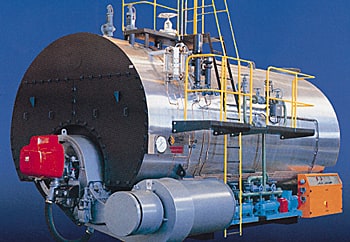

Oil gas-fired boilers with a capacity of 3,200 - 320000 kg/h and with working pressure up to 30 bar. These types of boilers fitted with ARI Safety Valves are installed in South Africa, for example, by companies in the petro-chemical, textile, food processing, wine producing, and beverage industries.
Stainless steel-bellows seal: tight isolation with metal disc, spindle protected from dirt and corrosion. Back pressure compemsated. |
Metal-bursting disc Type-test-approved to AD-A1 / Protects the valve against corrosion and dirt / leak free system / Enables installed valve testing |
Integrated proximity switch (feedback signal returned to control room for example) |
