ARI-STEVI AS 350
| Application (Stainless Steel): | Industrial installations, processing technology, plant manufacturing, etc. |
|---|---|
| Medium (Stainless Steel): | Cooling water, Warm water, Hot water, Steam, Oil, Air, Neutral gases, Alkalis, Alcohol, etc. |
| eClass-No.: | 37011001 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|

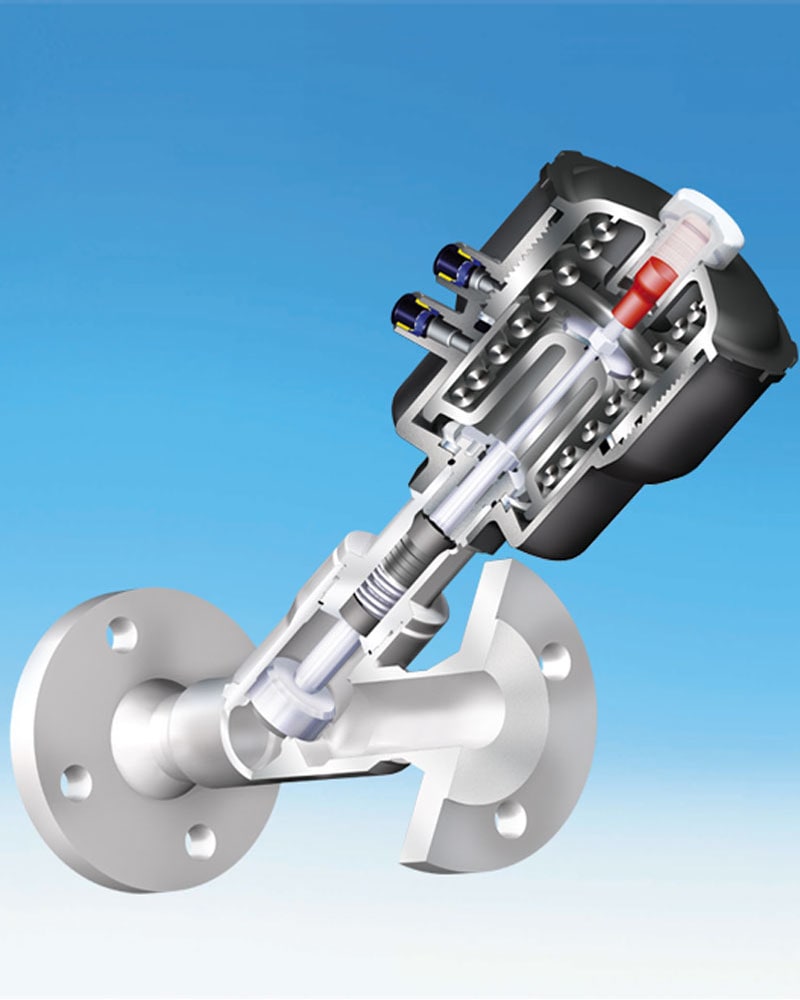

5252350-1 | PN 16 | DN 15-DN 25 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG50 |
|
|
5252350-1 | PN 16 | DN 25-DN 50 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG80 |
|
|

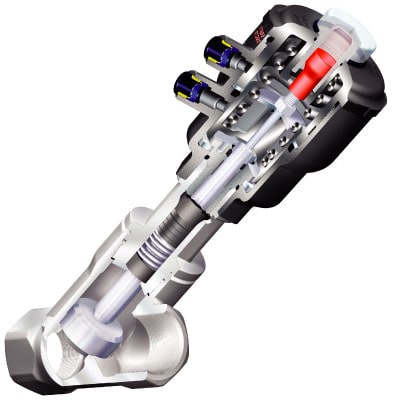

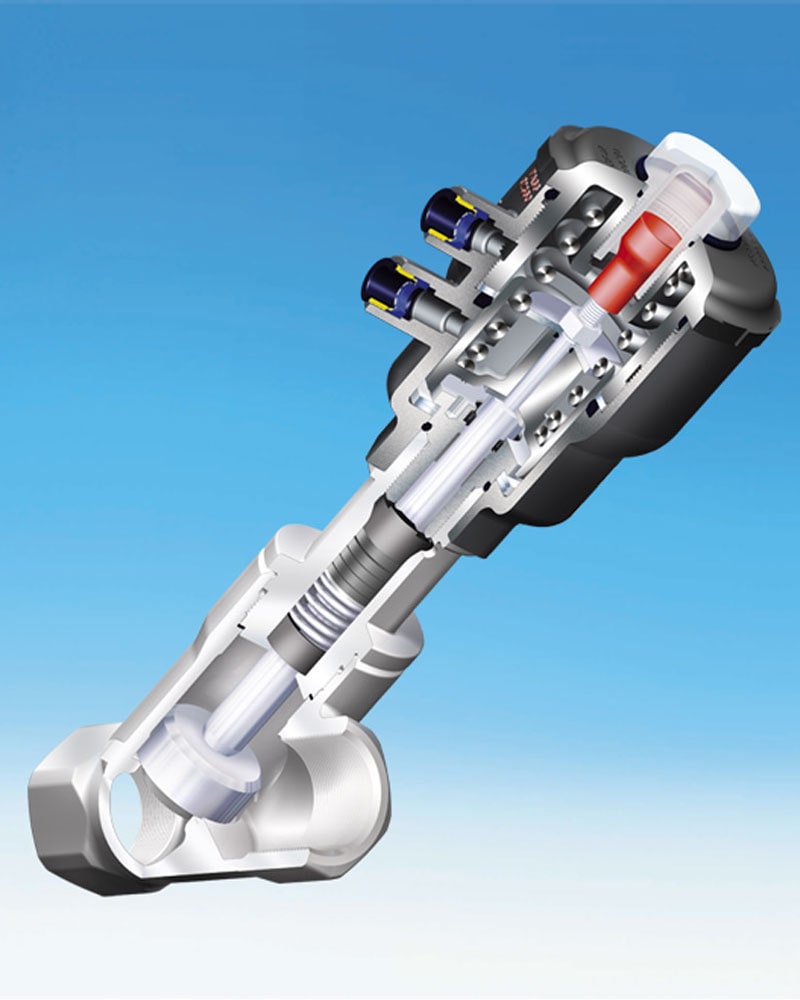

5252350-2 | PN 16 | DN 15-DN 25 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG50 |
|
|
5252350-2 | PN 16 | DN 25-DN 50 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG80 |
|
|

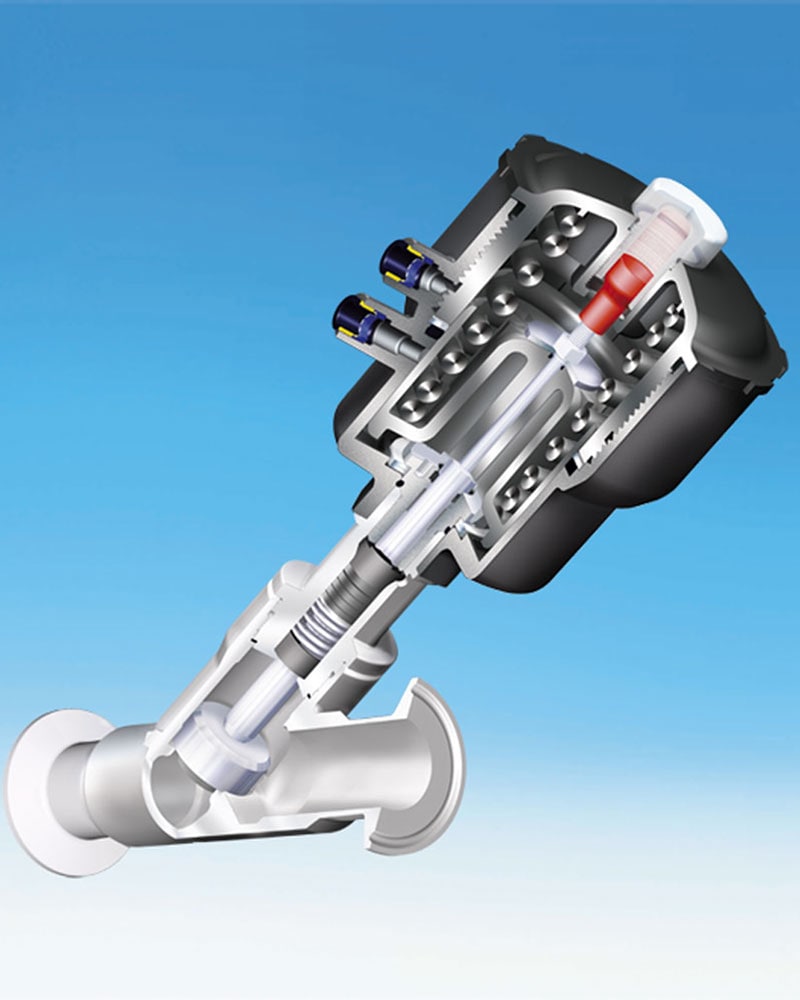

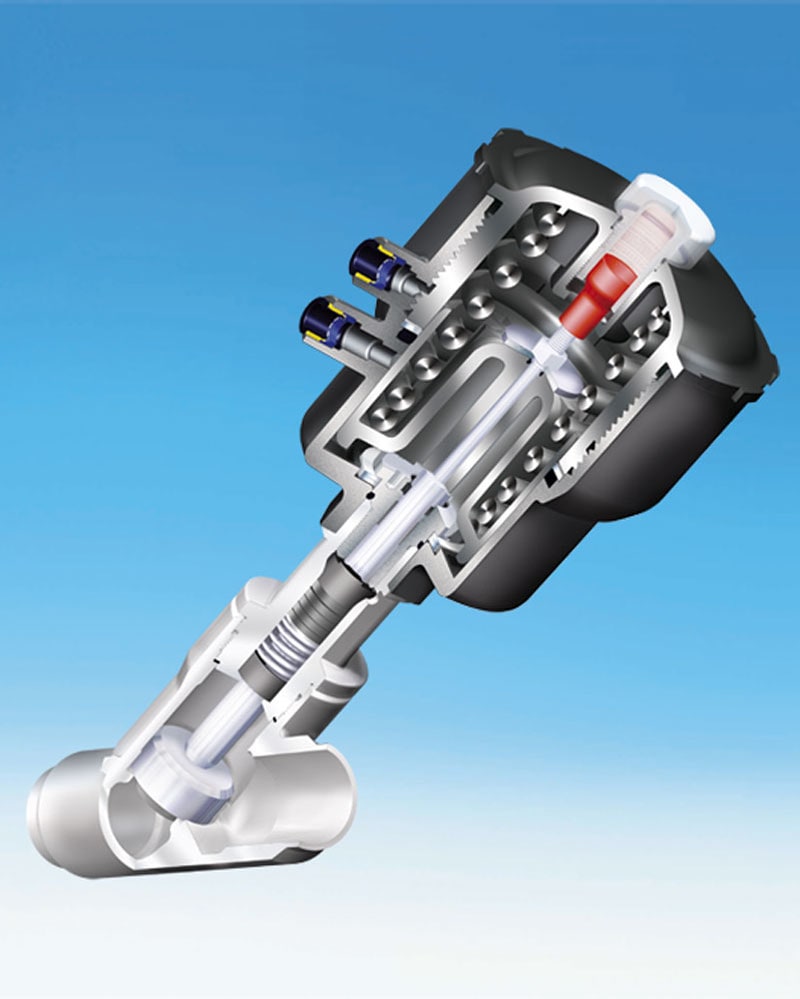

5252350-4 | PN 16 | DN 15-DN 25 | GX5CrNiMo19-11-2, 1.4408 | butt weld end | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG50 |
|
|
5252350-4 | PN 16 | DN 15-DN 20 | GX5CrNiMo19-11-2, 1.4408 | butt weld end | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG50 |
|
|
5252350-4 | PN 16 | DN 25-DN 50 | GX5CrNiMo19-11-2, 1.4408 | butt weld end | Y-pattern | -60 °C to 400 °C | pneumatic actuator ATG80 |
|
|

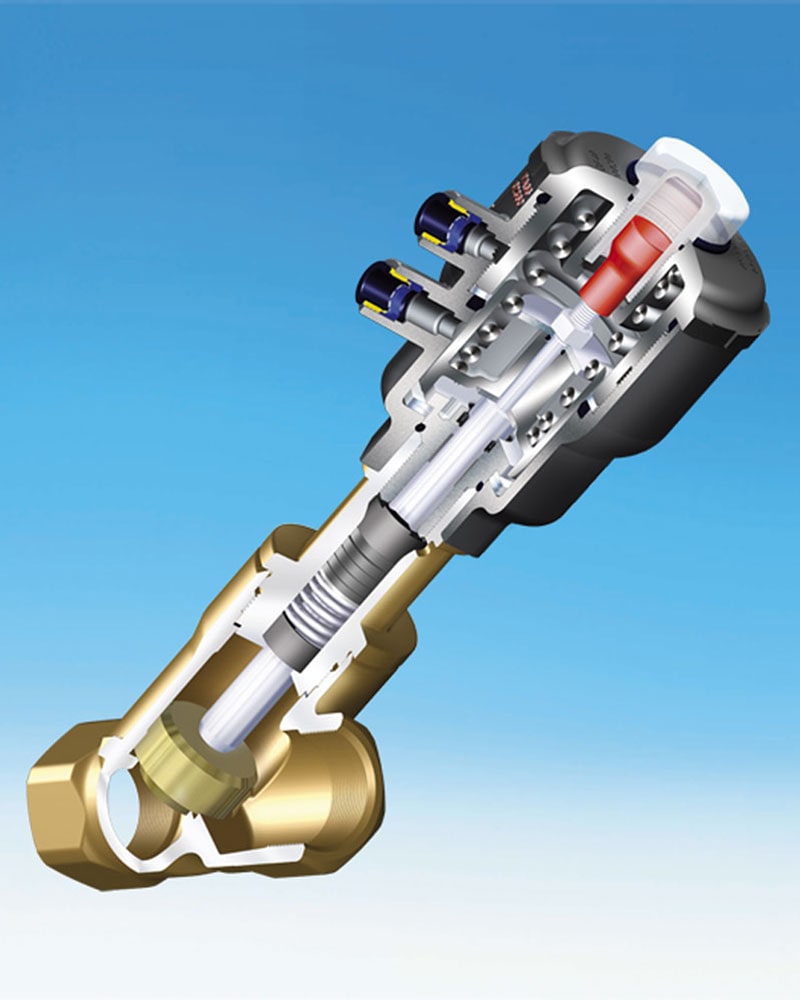

7272350-2 | PN 16 | DN 15-DN 25 | CuSn5Zn5Pb5-C, CC491K | screwed socket | Y-pattern | -10 °C to 130 °C | pneumatic actuator ATG50 |
|
|
7272350-2 | PN 16 | DN 25-DN 50 | CuSn5Zn5Pb5-C, CC491K | screwed socket | Y-pattern | -10 °C to 130 °C | pneumatic actuator ATG80 |
Powerful: Stays reliably tight for up to 1,000,000 strokes due to the superior, self-adjusting stem sealing system (V-ring unit, burnished stem with double bearing). |
Economical:Up to 31% energy saving* due to the excellent flow values. |
Convenient Handling: Control line connected quickly and easily. No screw joint required for compressed air due to the plug-in connection. |
Versatile: Greater flexibility due to the comprehensive range of accessories: limit switch, travel limiter, lever for emergency operation, 3/2-way NAMUR solenoid valve, incl. adapter plate (photo). |
