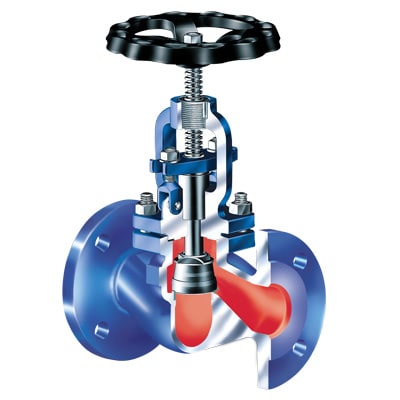

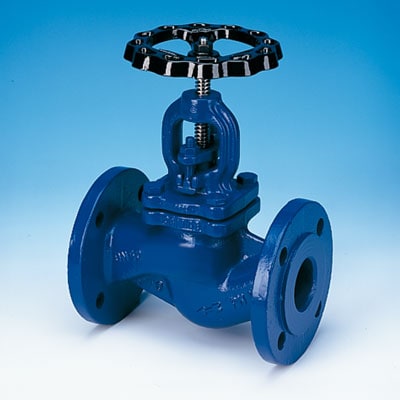

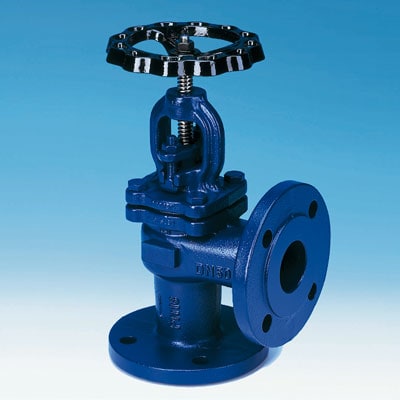

ARI-STOBU
| Application: | Industry, power stations, flue gas purification plant, vapour facilities, recycling facilities, shipbuilding, general plant manufacturing |
|---|---|
| Medium: | Steam, gases, liquids, etc. |
| Application (Stainless Steel): | Recycling facilities, chemical industry, hospital technology, process water installations, installations with aggressive media |
| Medium (Stainless Steel): | Process water, aggressive media, etc. |
| eClass-No.: | 37010201 |
Legende:
= Flow diagram
= Approvals
= Flow diagram = Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | |
|---|---|---|---|---|---|---|---|
|
|
12006 | PN 16 | DN 15-DN300 | EN-GJL-250, EN-JL1040 | flanged | Straight through | -10 °C to 300 °C |
|
|
22006 | PN 16 | DN 15-DN350 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Straight through | -10 °C to 350 °C |
|
|
23006 | PN 25 | DN 15-DN150 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Straight through | -10 °C to 350 °C |
|
|
34006 | PN 25 | DN 15-DN500 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C |
|
|
35006 | PN 40 | DN 15-DN500 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C |
|
|
35005 | PN 40 | DN 65-DN300 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 450 °C |
|
|
45006 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 450 °C |
|
|
45005 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C |
|
|
52006 | PN 16 | DN 15-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
52009 | PN 16 | DN 15-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
54006 | PN 25 | DN200-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
55006 | PN 40 | DN 15-DN150 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
55009 | PN 40 | DN 15-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C |

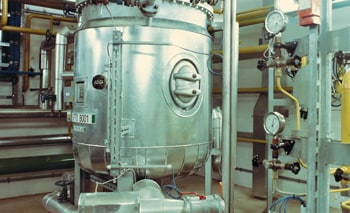

Power generating plant (emission gas scrubbing installation, shown: ammonia storage and evaporation)
