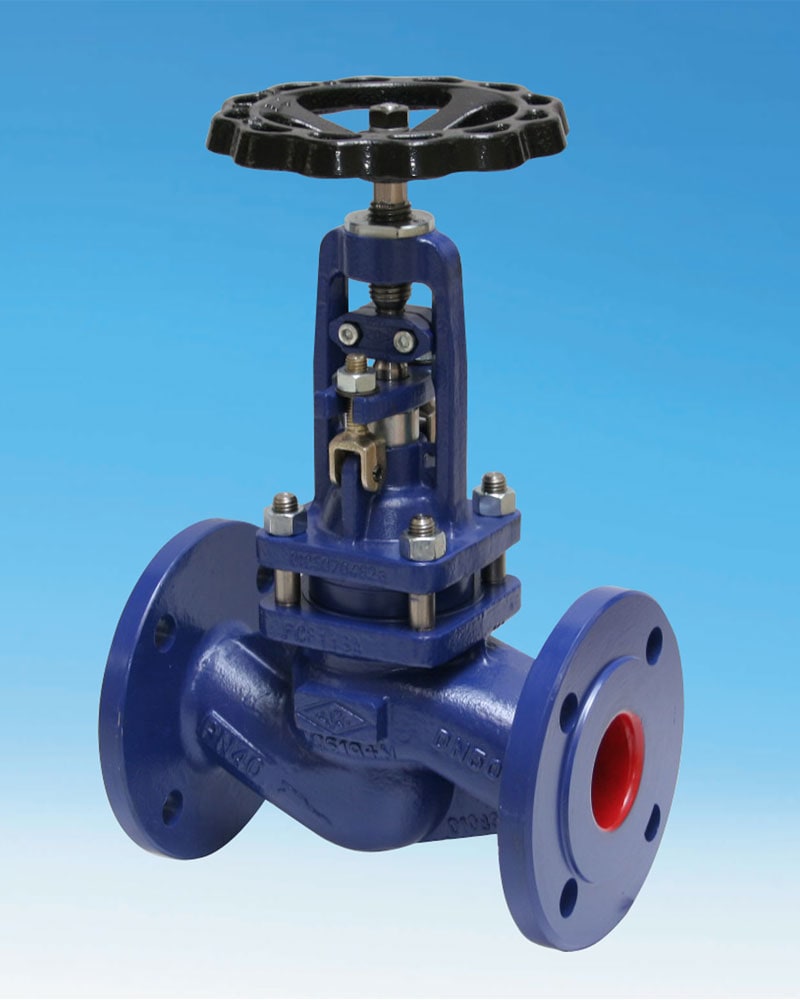

ARI-FABA -Supra C
| Application: | Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, thermal oil applications, general plant manufacturing, etc. |
|---|---|
| Medium: | Steam, gases, hot water, thermal oil, ammonia etc. |
| eClass-No.: | 37010201 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
35146....3 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C | Chemical version - one-piece stem |
|
|
35146....4 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C | Chemical version - two-piece stem |
|
|
35140....3 | PN 40 | DN 65-DN150 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 450 °C | Chemical version - one-piece stem |
|
|
35140....4 | PN 40 | DN 65-DN150 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 450 °C | Chemical version - two-piece stem |
|
|
35147....3 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | Chemical version - one-piece stem |
|
|
35147....4 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C | Chemical version - two-piece stem |
|
|
35166....3 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | butt weld end | Y-pattern | -60 °C to 450 °C | Chemical version - one-piece stem |
|
|
35166....4 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | butt weld end | Y-pattern | -60 °C to 450 °C | Chemical version - two-piece stem |
|
|
45140....3 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C | Chemical version - one-piece stem |
|
|
45140....4 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C | Chemical version - two-piece stem |

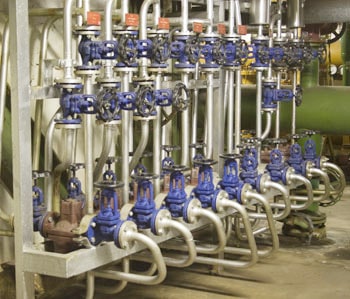

Public utility company Bielefeld
Bellows – medium contacted (also suitable for process pipes) |
Reinforced bellows (10,000 complete cycles) – welded to the top part of the body |
Additional stem guide via the parabolic plug (permits higher differential pressures) |
Two-piece stem allows retrofitting with pneumatic actuator (additional feature of FABA-Supra I/C) |
