ARI-FABA-Plus
| Application: | Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc. |
|---|---|
| Medium: | Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc. |
| Application (Stainless Steel): | Recycling facilities, chemical industry, hospital technology, process water installations, installations with aggressive media |
| Medium (Stainless Steel): | Process water, aggressive media, etc. |
| eClass-No.: | 37010201 |
Valve-TableReferenceDetailsCross-section drawingData sheetOperating instructionCADChemical resistance
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | |
|---|---|---|---|---|---|---|---|
|
|

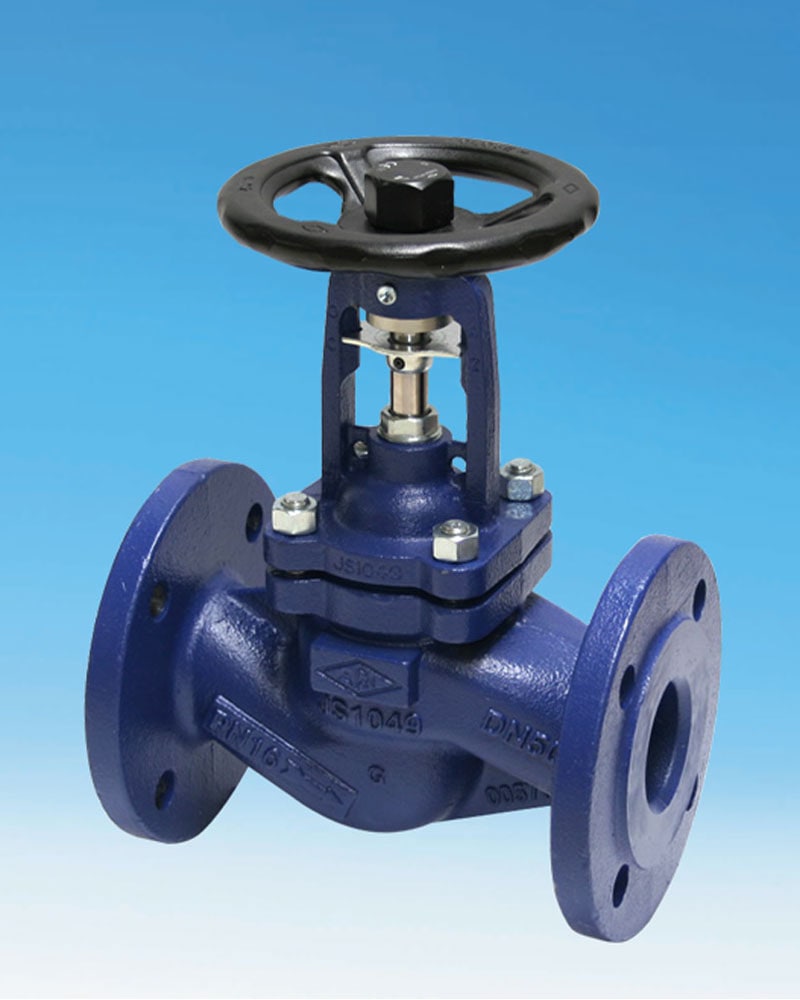

12046 | PN 16 | DN 15-DN300 | EN-GJL-250, EN-JL1040 | flanged | Straight through | -10 °C to 300 °C |
|
|

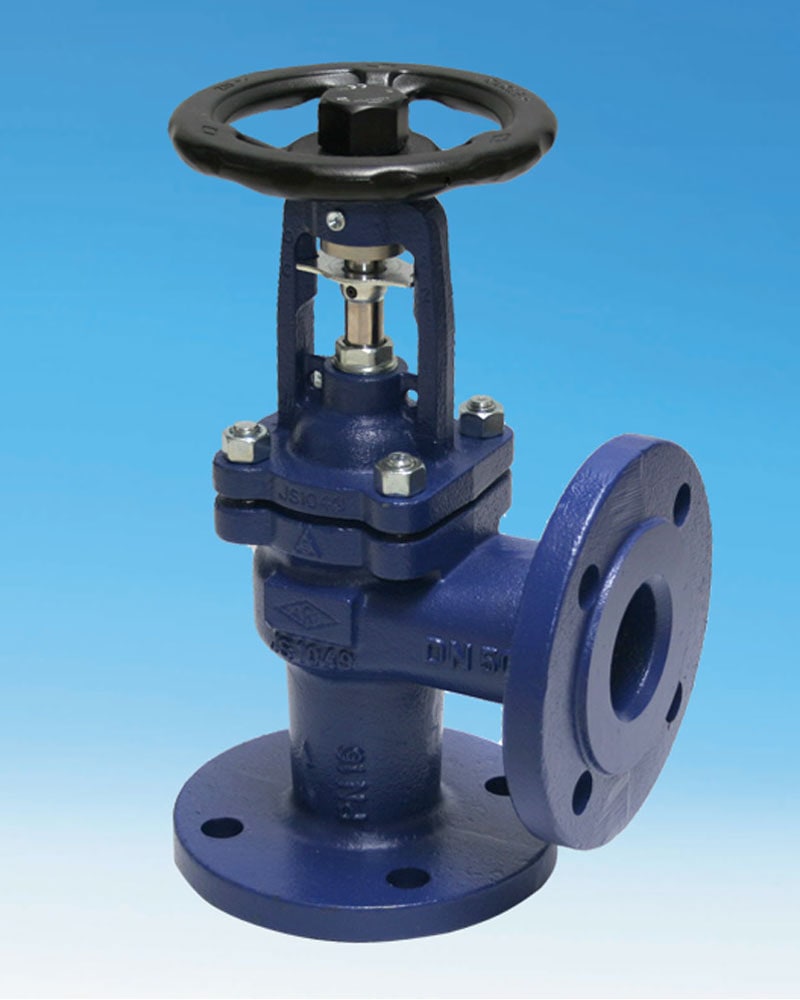

12047 | PN 16 | DN 15-DN300 | EN-GJL-250, EN-JL1040 | flanged | Angle pattern | -10 °C to 300 °C |
|
|
22046 | PN 16 | DN 15-DN350 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Straight through | -10 °C to 350 °C |
|
|
22047 | PN 16 | DN 15-DN300 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C |
|
|
23046 | PN 25 | DN 15-DN150 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Straight through | -10 °C to 350 °C |
|
|
23047 | PN 25 | DN 15-DN150 | EN-GJS-400-18U-LT, EN-JS1049 | flanged | Angle pattern | -10 °C to 350 °C |
|
|
34046 | PN 25 | DN200-DN400 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C |
|
|

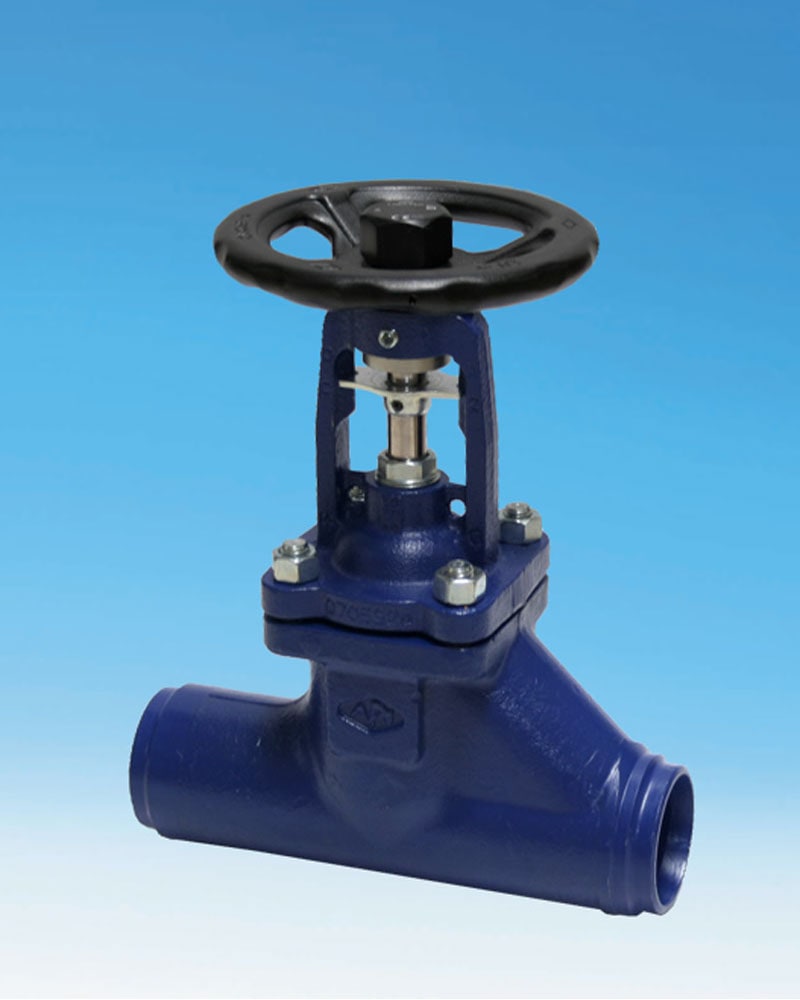

34040 | PN 25 | DN200-DN300 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 450 °C |
|
|
34047 | PN 25 | DN200-DN300 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C |
|
|

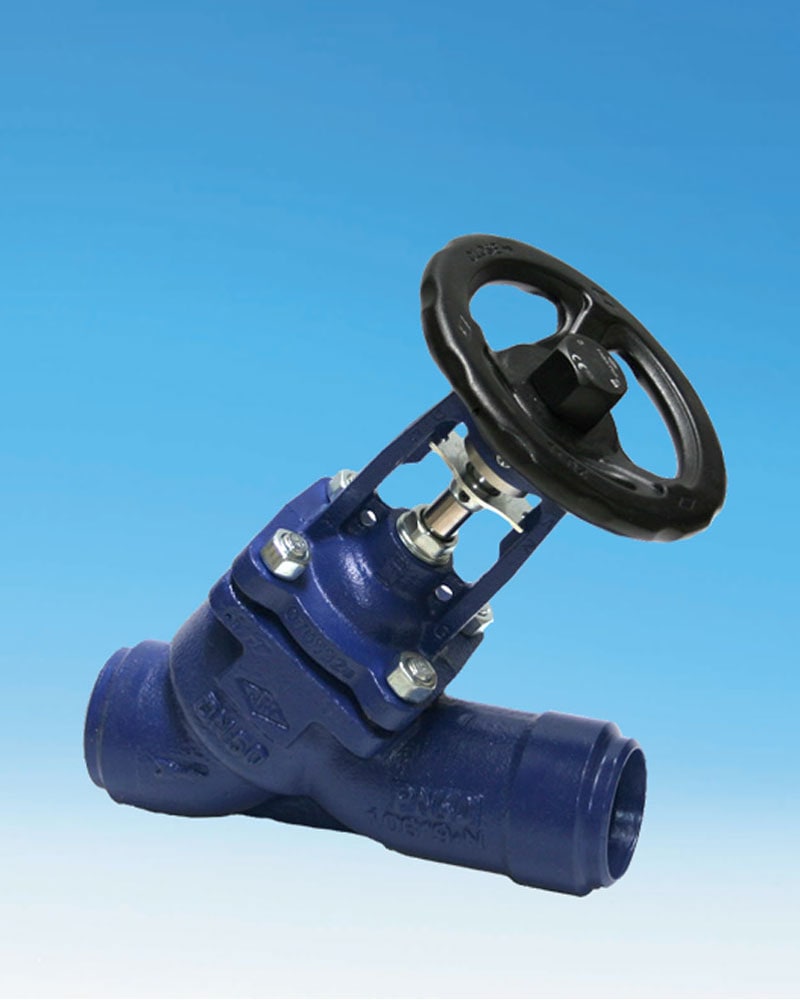

34066 | PN 25 | DN200-DN300 | GP240GH+N, 1.0619+N | butt weld end | Y-pattern | -60 °C to 450 °C |
|
|
35046 | PN 40 | DN 15-DN250 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 450 °C |
|
|
35040 | PN 40 | DN 65-DN300 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 450 °C |
|
|
35040 | PN 40 | DN 65-DN250 | GP240GH+N, 1.0619+N | union with butt weld end | Straight through | -60 °C to 450 °C |
|
|
35047 | PN 40 | DN 15-DN150 | GP240GH+N, 1.0619+N | flanged | Angle pattern | -60 °C to 450 °C |
|
|
35066 | PN 40 | DN 15-DN250 | GP240GH+N, 1.0619+N | butt weld end | Y-pattern | -60 °C to 450 °C |
|
|
45046 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 450 °C |
|
|
45040 | PN 40 | DN 15-DN 50 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C |
|
|
52046 | PN 16 | DN 15-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
52069 | PN 16 | DN 15-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
54046 | PN 25 | DN200-DN250 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
55046 | PN 40 | DN 15-DN150 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 400 °C |
|
|
55069 | PN 40 | DN 15-DN150 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
55069 | PN 40 | DN200-DN200 | GX5CrNiMo19-11-2, 1.4408 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
55066 | PN 40 | DN 15-DN 50 | X6CrNiMoTi17-12-2, 1.4571 | butt weld end | Y-pattern | -60 °C to 400 °C |
|
|
55066 | PN 40 | DN 65-DN150 | GX5CrNiMoN19-11-2, 1.4581 | butt weld end | Y-pattern | -60 °C to 400 °C |
|
|
62046 | PN 16 | DN 15-DN200 | 1.4408 / 1.0619.01 | flanged | Straight through | -60 °C to 400 °C |
|
|
62069 | PN 16 | DN 15-DN200 | 1.4408 / 1.0619.01 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
64046 | PN 25 | DN200-DN250 | 1.4408 / 1.0619.01 | flanged | Straight through | -60 °C to 400 °C |
|
|
65046 | PN 40 | DN 15-DN150 | 1.4408 / 1.0619.01 | flanged | Straight through | -60 °C to 400 °C |
|
|
65069 | PN 40 | DN 15-DN150 | 1.4408 / 1.0619.01 | flanged | Y-pattern | -60 °C to 400 °C |
|
|
65069 | PN 40 | DN200-DN200 | 1.4408 / 1.0619.01 | flanged | Y-pattern | -60 °C to 400 °C |
Pharmaceutical plant in Germany rn(shown: temperature producing loops for process temperature control, medium: alcohol-water mixture)
“Cut off effect” – surface deposits are removed from the seat when the valve closes |
Bonnet design – now even more resistant to water hammer |
Dual function – can be used simultaneously as a check valve and a stop valve with a tight shut-off feature due to the spring and to the loose plug |
