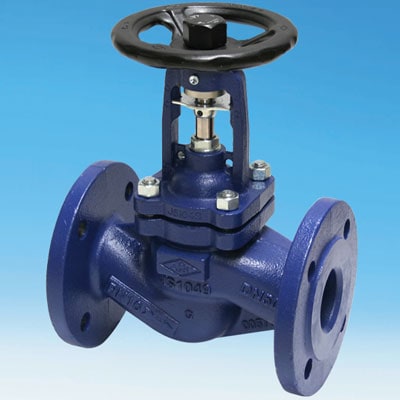

ARI-FABA-Plus ANSI
| Application: | Industry, powerstations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc. |
|---|---|
| Medium: | Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc. |
| Application: | Industry, Powerstations, Flue gas purification plant, processing technology, gas supply, vapour facilities, general plant manufacturing, etc. |
| Medium: | Steam, gases, hot water, etc. |
| eClass-No.: | 37010201 |
Valve-TableReferenceDetailsCross-section drawingData sheetOperating instructionCADChemical resistance
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | |
|---|---|---|---|---|---|---|---|
|
|
32041 | ANSI150 | 1/2"-6" | SA216WCB | flanged | Straight through | -60 °C to 450 °C |
|
|
35041 | ANSI300 | 1/2"-6" | SA216WCB | flanged | Straight through | -60 °C to 450 °C |
|
|
45049-2 | ANSI300 | 1/2"-2" | SA105 | screwed socket | Straight through | -60 °C to 450 °C |
|
|
45049-3 | ANSI300 | 1/2"-2" | SA105 | socket end | Straight through | -60 °C to 450 °C |

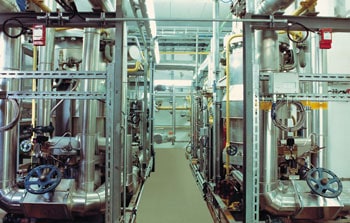

Generating plant (Emission gas scrubbing installation. Shown: Ammonia storage and evaporation).

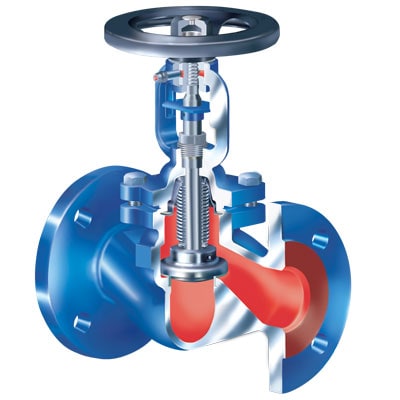

“Cut off effect” – surface deposits are removed from the seat when the valve closes |
Bonnet design – now even more resistant to water hammer |
Dual function – can be used simultaneously as a check valve and a stop valve with a tight shut-off feature due to the spring and to the loose plug |
