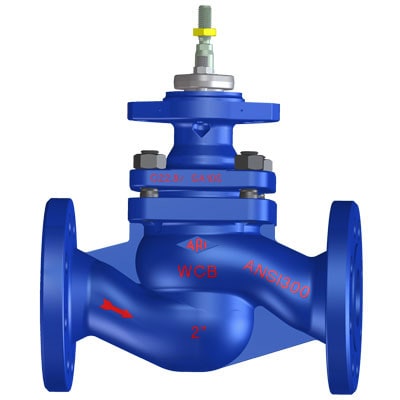

ARI-STEVI 470ANSI
| Application: | Industrial installations, processing technology, plant manufacturing, etc. |
|---|---|
| Medium: | Steam, condensate, gases with liquid components, etc. |
| eClass-No.: | 37010203 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
35470-ANSI | ANSI300 | 1"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | without actuator |
|
|
35470-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | ARI-PREMIO 2,2kN |
|
|
35470-ANSI | ANSI300 | 1"-6" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | ARI-PREMIO 5kN |
|
|
35470-ANSI | ANSI300 | 1 1/2"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | ARI-PREMIO 12kN |
|
|
35470-ANSI | ANSI300 | 3"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | ARI-PREMIO 15kN |
|
|
35470-ANSI | ANSI300 | 1 1/2"-4" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | AUMA SAR07.1 |
|
|
35470-ANSI | ANSI300 | 2"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | AUMA SAR07.5 |
|
|
35470-ANSI | ANSI300 | 3"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | AUMA SAR10.1 |
|
|
35470-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | DP32 |
|
|
35470-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | DP33 |
|
|
35470-ANSI | ANSI300 | 1 1/2"-8" | SA216WCB | flanged | Straight through | -10 °C to 450 °C | DP34 |
|
|
35471-ANSI | ANSI300 | 1"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | without actuator |
|
|
35471-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | ARI-PREMIO 2,2kN |
|
|
35471-ANSI | ANSI300 | 1"-6" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | ARI-PREMIO 5kN |
|
|
35471-ANSI | ANSI300 | 1 1/2"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | ARI-PREMIO 12kN |
|
|
35471-ANSI | ANSI300 | 3"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | ARI-PREMIO 15kN |
|
|
35471-ANSI | ANSI300 | 1 1/2"-4" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | AUMA SAR07.1 |
|
|
35471-ANSI | ANSI300 | 2"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | AUMA SAR07.5 |
|
|
35471-ANSI | ANSI300 | 3"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | AUMA SAR10.1 |
|
|
35471-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | DP32 |
|
|
35471-ANSI | ANSI300 | 1"-4" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | DP33 |
|
|
35471-ANSI | ANSI300 | 1 1/2"-8" | SA216WCB | flanged | Straight through | -60 °C to 450 °C | DP34 |

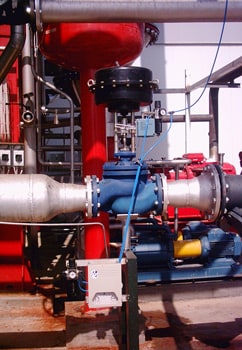

Plant for tomato processing: SAFE, PREDU, STEVI, FABA
Flexibility: internal parts - stem, plug (here: perforated plug), seatring - can be replaced independently of each other in situ. |
Safe even under exacting conditions e.g. blow-proof stem and shaft guided plug |
