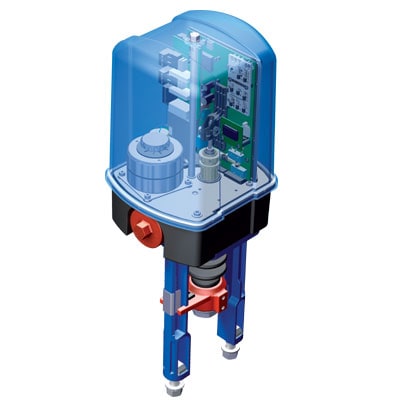

Intelligent electric actuator ARI-PREMIO-Plus

Application: Industrial installations, processing technology, plant manufacturing, etc.
Actuator-TableDetails
Legende: 11 = Approvals
TypeVoltageThrust forceControl speedTravelTemperaturr (perm. ambient temperature)
PREMIO-Plus 2,2kN 230V, 50/60Hz 1~ 2,2 kN 0,38 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 2,2kN 115V, 50/60Hz 1~ 2,2 kN 0,38 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 5kN 230V, 50/60Hz 1~ 5 kN 0,38 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 5kN 115V, 50/60Hz 1~ 5 kN 0,38 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 5kN 230V, 50/60Hz 1~ 5 kN 1,0 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 5kN 115V, 50/60Hz 1~ 5 kN 1,0 mm/sec. 50 mm -20 °C to 60 °C
PREMIO-Plus 12kN 400V, 50Hz 3~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 230V, 60Hz 1~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 115V, 60Hz 1~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 400V, 60Hz 3~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 230V, 50Hz 1~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 115V, 50Hz 1~ 12 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 400V, 50Hz 3~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 230V, 60Hz 1~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 115V, 60Hz 1~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 400V, 60Hz 3~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 230V, 50Hz 1~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 12kN 115V, 50Hz 1~ 12 kN 0,79 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 230V, 50Hz 1~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 115V, 50Hz 1~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 400V, 50Hz 3~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 230V, 60Hz 1~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 115V, 60Hz 1~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C
PREMIO-Plus 15kN 400V, 60Hz 3~ 15 kN 0,38 mm/sec. 65 mm -20 °C to 60 °C

Even more durable …due to Economy-Function (Economical Signal Conditioning). Prevents cycling of the valve, reducing wear.

Optimised handling …due to the self-initialisation feature (automatic adjustment to the valve stroke on start-up)

Even more durable …due to the in-trapped hood gasket

Optimised handling …due to the clear layout and user friendly design of the operator panel – directly on the unit (8 parameter switches)
