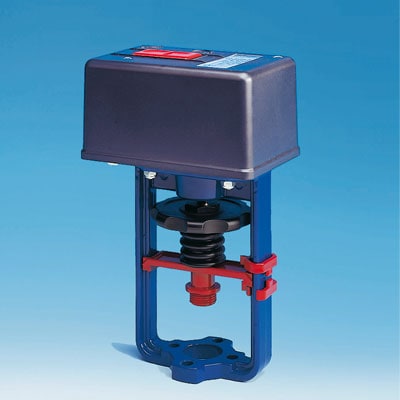

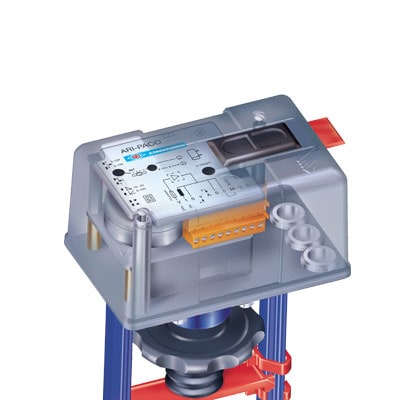

Electric actuator ARI-PACO
| Application: | Heating facilities, AIR conditioning facilities |
|---|
Legende:
= Approvals
= Approvals
| Type | Voltage | Thrust force | Control speed | Travel | Temperaturr (perm. ambient temperature) | |
|---|---|---|---|---|---|---|
|
| PACO 0,85kN | 230V, 50/60Hz 1~ | 0,85 kN | 0,11 mm/sec. | 20 mm | 0 °C to 50 °C |
|
| PACO 1,60kN | 230V, 50Hz 1~ | 1,6 kN | 0,15 mm/sec. | 30 mm | 0 °C to 50 °C |
|
| PACO 0,85kN | 24V, 50/60Hz 1~ | 0,85 kN | 0,11 mm/sec. | 20 mm | 0 °C to 50 °C |
|
| PACO 1,60kN | 24V, 50Hz 1~ | 1,6 kN | 0,15 mm/sec. | 30 mm | 0 °C to 50 °C |

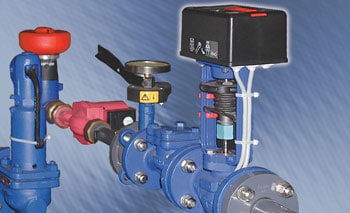

Heating regulation by STEVI H“ with electric actuator ARI- PACO“
