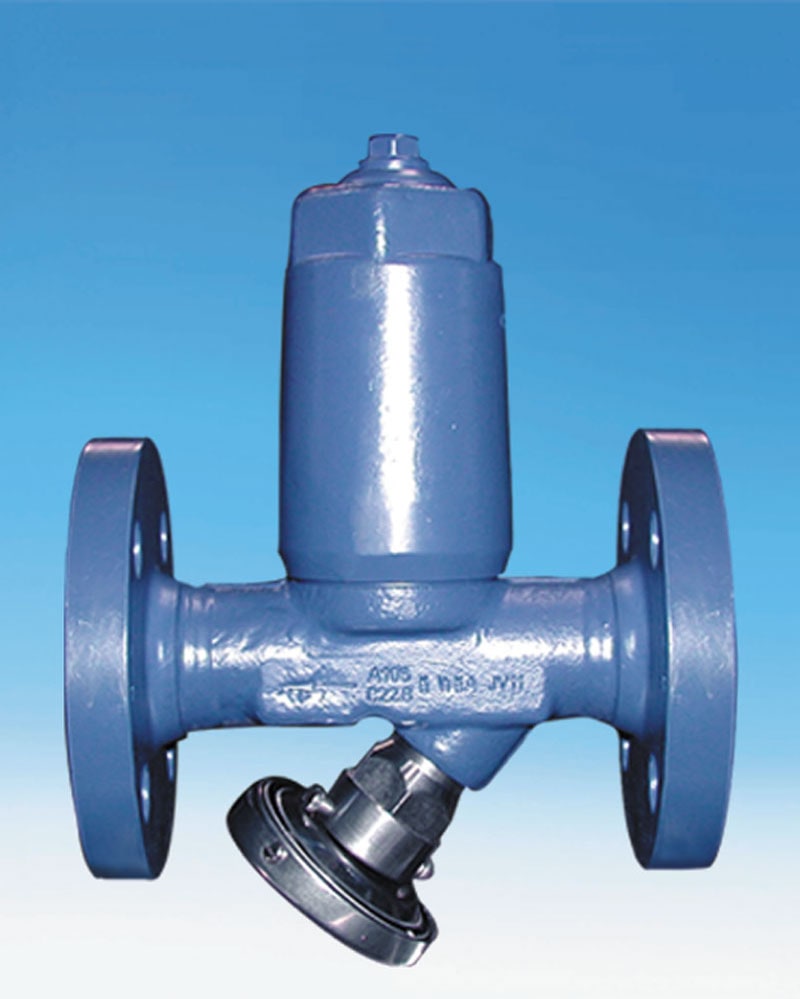

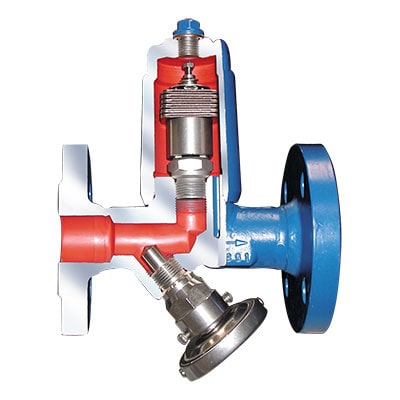

Liquid return temperature limiter
| Application: | Return temperature limitation for a pipe tracing system. |
|---|---|
| Medium: | Steam, condensate, etc. |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
45650-1 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 180 °C | Standard |
|
|
45650-2 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | screwed socket | Straight through | -60 °C to 180 °C | Standard |
|
|
45650-3 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | socket end | Straight through | -60 °C to 180 °C | Standard |
|
|
45650-4 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 180 °C | Standard |
