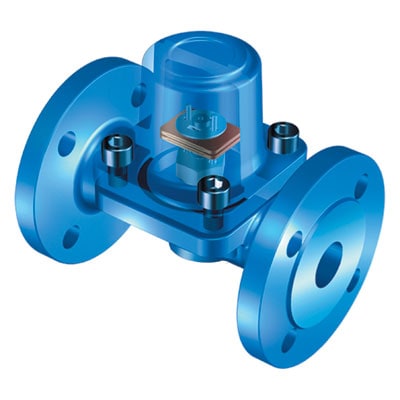

Liquid drainer
| Application: | For automatic condensate-discharge during start-up and operation |
|---|---|
| Medium: | Steam, condensate, etc. |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
12665-1 | PN 16 | DN 25-DN 25 | EN-GJL-250, EN-JL1040 | flanged | Straight through | -10 °C to 300 °C | Standard |
|
|
12665-5 | PN 16 | DN 15-DN 20 | EN-GJL-250, EN-JL1040 | union with butt weld end | Straight through | -10 °C to 300 °C | Standard |
|
|
45665-1 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | flanged | Straight through | -60 °C to 450 °C | Standard |
|
|
45665-2 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | screwed socket | Straight through | -60 °C to 450 °C | Standard |
|
|
45665-3 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | socket end | Straight through | -60 °C to 450 °C | Standard |
|
|
45665-4 | PN 40 | DN 15-DN 25 | P250 GH, 1.0460 | butt weld end | Straight through | -60 °C to 450 °C | Standard |
