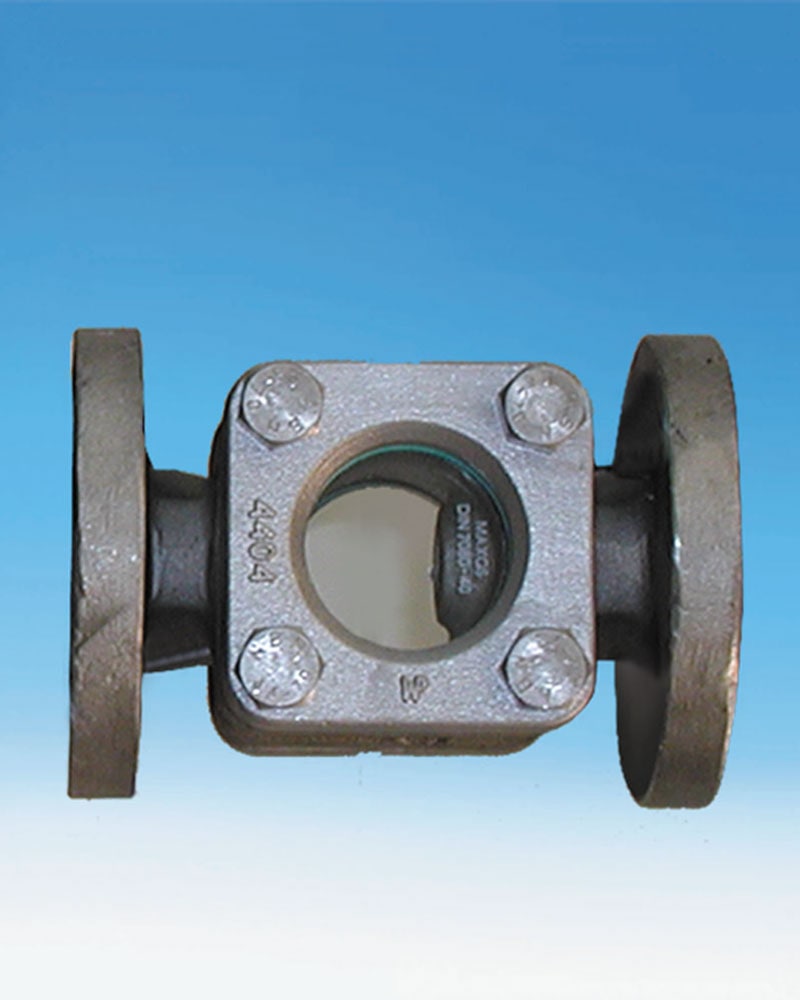

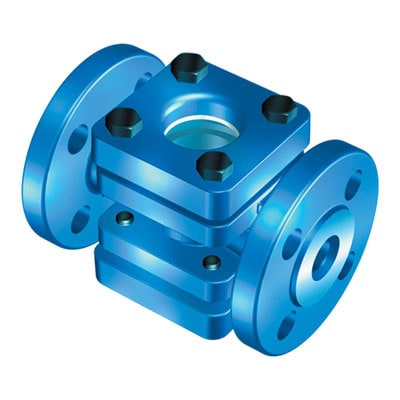

Double window sight glasses
| Application: | For monitoring the function of steam traps in pipe work systems |
|---|---|
| Medium: | Steam, condensate, etc. |
| eClass-No.: | 37011301 |
Legende:
= Approvals
= Approvals
| Figure | PN | DN | Material | Connection | Form | Temperature/*body | Variation | |
|---|---|---|---|---|---|---|---|---|
|
|
12660-1 | PN 16 | DN 15-DN250 | EN-GJL-250, EN-JL1040 | flanged | Straight through | -10 °C to 280 °C | Standard |
|
|
12660-2 | PN 16 | DN 15-DN 50 | EN-GJL-250, EN-JL1040 | screwed socket | Straight through | -10 °C to 280 °C | Standard |
|
|
32660-1 | PN 16 | DN 15-DN250 | GP240GH+N, 1.0619+N | flanged | Straight through | -10 °C to 280 °C | Standard |
|
|
32660-2 | PN 16 | DN 15-DN 50 | GP240GH+N, 1.0619+N | screwed socket | Straight through | -10 °C to 280 °C | Standard |
|
|
35661-1 | PN 40 | DN 15-DN250 | GP240GH+N, 1.0619+N | flanged | Straight through | -60 °C to 280 °C | Standard |
|
|
35660-2 | PN 40 | DN 15-DN 50 | GP240GH+N, 1.0619+N | screwed socket | Straight through | -60 °C to 280 °C | Standard |
|
|
35660-4 | PN 40 | DN 15-DN250 | GP240GH+N, 1.0619+N | butt weld end | Straight through | -60 °C to 280 °C | Standard |
|
|
52660-1 | PN 16 | DN 15-DN250 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -10 °C to 280 °C | Standard |
|
|
52660-2 | PN 16 | DN 15-DN 50 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Straight through | -10 °C to 280 °C | Standard |
|
|
55661-1 | PN 40 | DN 15-DN250 | GX5CrNiMo19-11-2, 1.4408 | flanged | Straight through | -60 °C to 280 °C | Standard |
|
|
55660-2 | PN 40 | DN 15-DN 50 | GX5CrNiMo19-11-2, 1.4408 | screwed socket | Straight through | -60 °C to 280 °C | Standard |
|
|
55660-4 | PN 40 | DN 15-DN250 | GX5CrNiMo19-11-2, 1.4408 | butt weld end | Straight through | -60 °C to 280 °C | Standard |
